在介绍WebRTC的线程模型之前，先介绍Webrtc线程模型中用到的几个简单、常用的模块或函数。

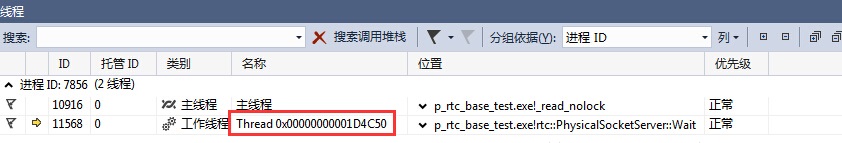

一、设置线程名

//platform_thread.cc

void SetCurrentThreadName(const char* name) {
#if defined(WEBRTC_WIN)
  struct {
    DWORD dwType;
    LPCSTR szName;
    DWORD dwThreadID;
    DWORD dwFlags;
  } threadname_info = {0x1000, name, static_cast<DWORD>(-1), 0};

  __try {
    ::RaiseException(0x406D1388, 0, sizeof(threadname_info) / sizeof(DWORD),
                     reinterpret_cast<ULONG_PTR*>(&threadname_info));
  } __except (EXCEPTION_EXECUTE_HANDLER) {
  }
#elif defined(WEBRTC_LINUX) || defined(WEBRTC_ANDROID)
  prctl(PR_SET_NAME, reinterpret_cast<unsigned long>(name));
#elif defined(WEBRTC_MAC) || defined(WEBRTC_IOS)
  pthread_setname_np(name);
#endif
}

二、原子操作

//atomicops.h
class AtomicOps {
 public:
#if defined(WEBRTC_WIN)
  // Assumes sizeof(int) == sizeof(LONG), which it is on Win32 and Win64.
  static int Increment(volatile int* i) {
    return ::InterlockedIncrement(reinterpret_cast<volatile LONG*>(i));
  }
  static int Decrement(volatile int* i) {
    return ::InterlockedDecrement(reinterpret_cast<volatile LONG*>(i));
  }
  static int AcquireLoad(volatile const int* i) {
    return *i;
  }
  static void ReleaseStore(volatile int* i, int value) {
    *i = value;
  }
  static int CompareAndSwap(volatile int* i, int old_value, int new_value) {
    return ::InterlockedCompareExchange(reinterpret_cast<volatile LONG*>(i),
                                        new_value,
                                        old_value);
  }
  // Pointer variants.
  template <typename T>
  static T* AcquireLoadPtr(T* volatile* ptr) {
    return *ptr;
  }
  template <typename T>
  static T* CompareAndSwapPtr(T* volatile* ptr, T* old_value, T* new_value) {
    return static_cast<T*>(::InterlockedCompareExchangePointer(
        reinterpret_cast<PVOID volatile*>(ptr), new_value, old_value));
  }
#else
  static int Increment(volatile int* i) {
    return __sync_add_and_fetch(i, 1);
  }
  static int Decrement(volatile int* i) {
    return __sync_sub_and_fetch(i, 1);
  }
  static int AcquireLoad(volatile const int* i) {
    return __atomic_load_n(i, __ATOMIC_ACQUIRE);
  }
  static void ReleaseStore(volatile int* i, int value) {
    __atomic_store_n(i, value, __ATOMIC_RELEASE);
  }
  static int CompareAndSwap(volatile int* i, int old_value, int new_value) {
    return __sync_val_compare_and_swap(i, old_value, new_value);
  }
  // Pointer variants.
  template <typename T>
  static T* AcquireLoadPtr(T* volatile* ptr) {
    return __atomic_load_n(ptr, __ATOMIC_ACQUIRE);
  }
  template <typename T>
  static T* CompareAndSwapPtr(T* volatile* ptr, T* old_value, T* new_value) {
    return __sync_val_compare_and_swap(ptr, old_value, new_value);
  }
#endif
};

使用示例

1
2
3

bool MessageQueue::IsQuitting() {
  return AtomicOps::AcquireLoad(&stop_) != 0;
}

三、线程模型原理

WebRTC的线程功能由Thread类提供。Thread继承于消息队列MessageQueue，这样WebRTC中的每个线程都有了自己的消息循环，外部可以向该线程的消息循环Post消息Message，然后该线程轮询从消息循环Get到消息后处理消息。

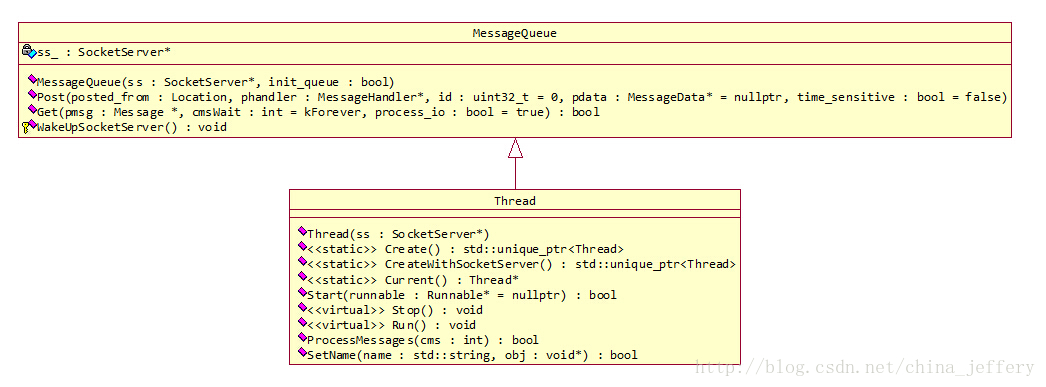

UML如下：

四、Message和MessageQueue

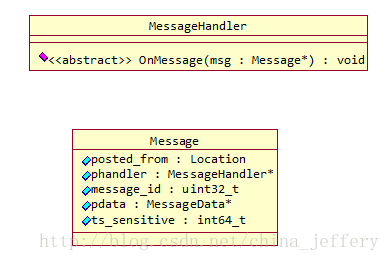

Message用于定义单个消息：

posted_from
标记改条消息发送自哪个函数，一般都是直接用RTC_FROM_HERE宏来赋值；
message_id
32位整数，消息ID；
pdata
消息携带的数据指针，虽然定义MessageData*类型，但也可以等同于void*。
ts_sensitive
消息的敏感时间点。在使用MessageQueue::Post等方法发送消息时，若time_sensitive == true则设置ts_sensitive = TimeMillis() + kMaxMsgLatency 即当前时间 + 最大消息延迟时间。当消息被从队列中取出的时间大于该时间，则会打印警告日志。
phandler
消息处理器，MessageHandler接口的指针。用户需要继承该类，并重写其OnMessage虚函数。

MessageQueue实现了WebRTC中消息队列的功能，如Post方法用于添加消息；Get方法用于从队列取出消息，若队列没有消息则一直等待，具体的等待和唤醒的方式通过SocketServer的Wait和WakeUp来实现。

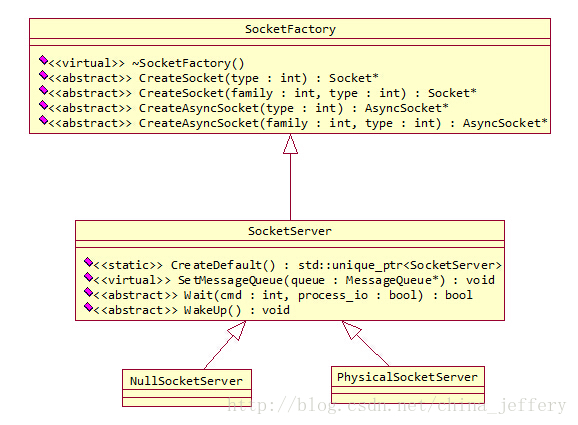

SocketServer是一个纯抽象类，NullSocketServer和PhysicalSocketServer都派生自该类。NullSocketServer比较简单，没有创建SOCKET，只处理本地事件（CreateEvent系列函数）；PhysicalSocketServer会创建SOCKET，并可以处理网络事件（WSACreateEvent系列函数）。在单纯的线程模型中，SocketServer只用于处理等待和唤醒操作。

五、 Thread

Thread类提供了2个静态函数（Create, CreateWithSocketServer）来构造Thread实例。

不建议使用new Thread()调用默认构造函数的方式，代码注释中已经给出了解释：

// DEPRECATED.
// The default constructor should not be used because it hides whether or
// not a socket server will be associated with the thread. Most instances
// of Thread do actually not need one, so please use either of the Create*
// methods to construct an instance of Thread.
Thread();

下面是Thread类构造的大致过程：

+-----------------------------+
|                             |
|  new Thread(SocketServer*)  |
|                             |
+---+-------------------------+
    |
    |
    |         +-----------------------------------+
    |         |                                   |
    +--------->  new MessageQueue(SocketServer*)  |
              |                                   |
              +-----------------------------------+

构造完Thread实例之后，调用Start来启动线程，框架会根据Start函数的Runnable参数是否为NULL来判断是需要运行用户自定义的Runnable->Run(), 还是运行默认ProcessMessage去循环从消息队列中获取消息来处理。

若运行用户自定义的Runnable->Run()，则用户需要继承rtc::Runnable去重载Run()；
若运行默认的ProcessMessage，则用户则需要定义Message，向线程中Post该Message，让线程来执行。

流程如下：

+---------------------------+
|                           |
| Thread->Start(Runnable*)  |
|                           |
+-+-------------------------+
  |
  |       +-------------------------+
  |       |                         |
  +-------> CreateThrad(PreRun)     |
          |                         |
          +-------------------------+
            |Runnable* is NULL?
            |
            |           +------------------+
            |           |                  |
            +----------->  Runnable->Run() |
            |           |                  |
            |           +------------------+
            |
            |
            |           +------------------+
            |           |                  |
            +----------->  Thread->Run()   |
                        |                  |
                        +-+----------------+
                          |
                          |
                          |    +--------------------------+
                          |    |                          |
                          +----> Thread->ProcessMessage() |
                               |                          |
                               +--+-----------------------+
                                  |
                                  |     +--------------------------------+
                                  |     |                                |
                                  +-----> Loop call MessageQueue->Get()  |
                                        |                                |
                                        +--------------------------------+

六、示例

6.1 实现Runnbale

#include "rtc_base/thread.h"

class MyTask : public rtc::Runnable {
public:
  MyTask(const std::string &name) : name_(name) {
  }
protected:
  void Run(Thread* thread) {
    std::cout << "task name: " << name_ << std::endl;
    std::cout << "my thread id: " << thread->GetId() << std::endl;
  }
private:
  std::string name_;
};

int main()
{
  std::unique_ptr<rtc::Thread> thread = rtc::Thread::Create();
  thread->Start(new MyTask("task1"));

  getchar();
    return 0;
}

6.2 发送Message

class MyTaskHandler : public rtc::MessageHandler {
public:
  MyTaskHandler(const std::string &name) : name_(name) {

  }
protected:
  void OnMessage(Message* msg) {
    std::cout << "task name: " << name_ << std::endl;
    std::cout << "my thread id: " << Thread::Current()->GetId() << std::endl;
  }
private:
  std::string name_;
};

int main()
{
  std::unique_ptr<rtc::Thread> thread = rtc::Thread::Create();
  thread->Start(nullptr);

  thread->Post(RTC_FROM_HERE, new MyTaskHandler("task2"), 0, nullptr, false);

  getchar();
    return 0;
}
